1. Client Pain Points
1-1. On-prem Infrastructure Inadequate Against Modern Threats
As cyberattacks evolve, legacy on-premises systems face multiple challenges. Aging equipment requires costly replacements, and limited bandwidth makes it difficult to withstand large-scale attacks, often resulting in website outages.
1-2. Data Routing Must Avoid China-Based Nodes
While not explicitly stated in regulations, the financial industry deals with highly sensitive data. Even after cloud adoption was permitted in Taiwan in 2023, clients remain cautious and prefer to avoid any chance of data passing through nodes in China.
1-3. Concerns Over Usage-Based Billing Models
Most cloud services charge based on traffic volume. As a major financial trading center, the client handles heavy daily traffic and is a likely target for DDoS attacks. This raises significant concerns about potential cost surges due to traffic-based billing.
1-4. Fear of Blocking Legitimate Transactions
Many cloud security services rely on strict blocking policies. However, during high-frequency trading, some legitimate user behaviors may resemble automated bot activity. The client is concerned that overly aggressive blocking could interfere with actual transactions and prefers a more flexible approach.
2. Twister5’s Support and Solutions
Integrated Cloud and On-Premise Defense: Achieving Cyber Resilience through Dual-Layer Protection
2-1. Cloud-On-Prem Joint Defense
By retaining the client’s existing on-prem infrastructure, Cloudflare is used as the first layer of protection—blocking threats at the edge, hiding the origin IP, and directing suspicious traffic through its Anycast network for mitigation.
Then, the on-prem system performs detailed adjustments by setting specific access rules. This approach not only simplifies the on-prem infrastructure over time but also establishes collaborative protection and failover between both environments
2-2. Excluding China, Hong Kong, and Macau—Using Nearby Nodes for Traffic Scrubbing
While Cloudflare by default does not route through China-based nodes, to further reduce any data leakage concerns, Twister5 helped the client configure the system to exclude Hong Kong and Macau as well.
Nearby traffic is instead routed through Japan, South Korea, or Taiwan’s own nodes for scrubbing, ensuring data security.
2-3. One Portal for Flexible Switching
Cloudflare only charges based on clean traffic, so clients don’t need to worry about cost spikes during large-scale attacks.
However, due to the client’s high daily trading volume, some traffic was evaluated as not needing Cloudflare filtering.
Twister5 assisted in setting up a one-click switching feature, allowing secure traffic to be routed directly to the on-prem system based on predefined conditions—striking a balance between cost control and protection.
2-4. Cloudflare AI-Based Automated Defense for Large-Scale and Zero-Day Attacks
Hacker techniques evolve daily. As mentioned earlier, Cloudflare provides first-layer, large-scale automated AI defense—achieving a “Fight AI with AI” strategy.
Cloudflare first verifies and blocks suspicious behavior (e.g., bot-like user actions) through its challenge mechanisms.
hen, the client can use its on-prem system to perform deeper analysis and filtering. This ensures that legitimate user transactions are not blocked while maintaining complete protection.

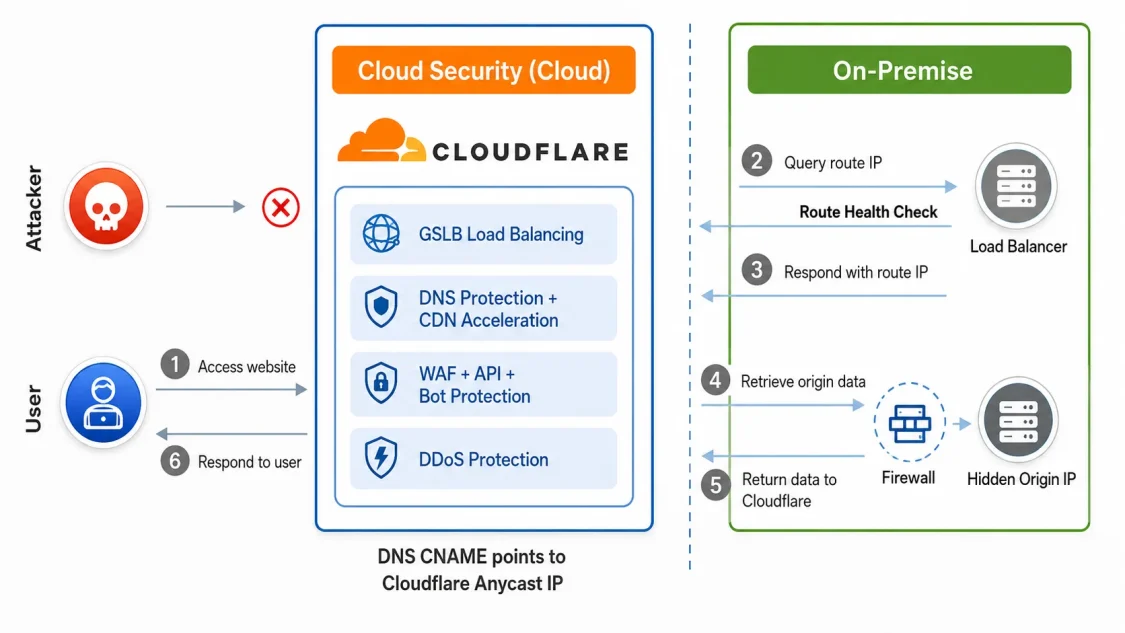

3. Architecture Diagram
4. Current Results
4-1. Successfully Defended Against Large-Scale Attacks
After restructuring its security architecture, the client successfully mitigated a large-scale traffic attack launched by hackers. On the day of the attack, traffic volume spiked to 350 times the normal level. However, after Cloudflare’s filtering, the traffic load returned to normal levels, and all trading activities remained unaffected.
4-2. Accurate Traffic Visibility
Previously, traffic estimates were rough and manually calculated by the client. In this case, actual traffic turned out to be nearly five times higher than originally estimated.
With the implementation of Cloudflare, the client can now clearly identify traffic sources and effectively filter out suspicious traffic.
